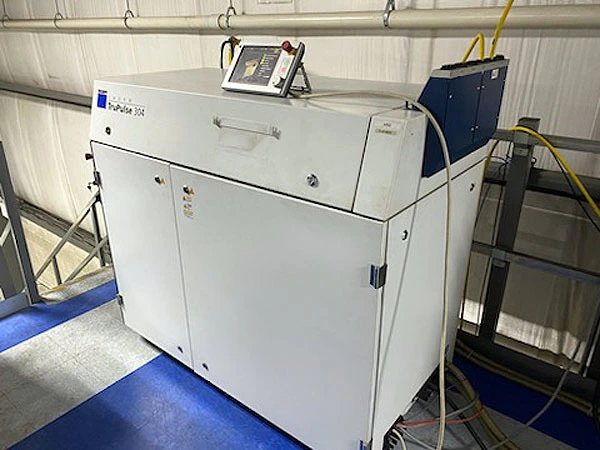

Trumpf TruPulse 304 CNC Laser Welder, 2017 - 3178
Laser - Welder, Welder
Laser Parameters
Laser Power at the workpiece 300 W
Max. Peak Pulse Power 9 kW
Beam Quality 16 mm . mrad
Wavelength 1064 nm
Adjustable Pulse Duration 0.3 ms – 50 ms
Max. Pulse Repetition Frequency 833 Hz
Max. Pulse Energy 60 J
90 J
Min. Laser Light Cable Diameter 400 um
Structural Design
Dimension 59” x 54” x 29”
Max. Number of Laser Light Cables 6
Laser Parameters
Laser Power at the workpiece 300 W
Max. Peak Pulse Power 6 kW
Beam Quality 16 mm . mrad
Wavelength 1064 nm
Adjustable Pulse Duration 0.3 ms – 50 ms
Max. Pulse Repetition Frequency 833 Hz
Max. Pulse Energy 60 J
90 J
Min. Laser Light Cable Diameter 400 um
Structural Design
Dimension 59” x 54” x 29”
Max. Number of Laser Light Cables 6
