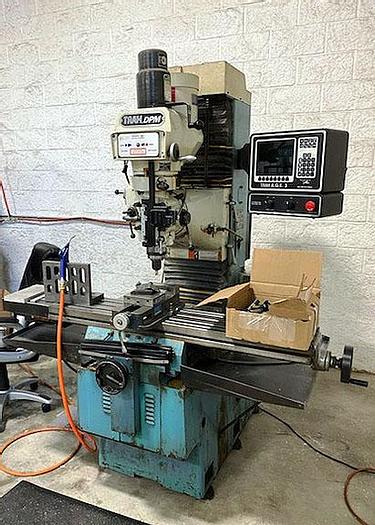

1998 Southwest, TRAK-DPM, 3-Axis CNC Knee Mill, 1998 TRACK-DPM 3 AXIS

1998 Southwest, TRAK-DPM, 3-Axis CNC Knee Mill, 1998 TRACK-DPM 3 AXIS

Contact us for price

Enfield, CT

orCall 860-623-5700

Description

Prototrak A.G.E. 3-Axis CNC Control

Cycle Capability

Auto Geometry Engine software

Tool Path Graphics

10" Color Screen

Pentium Processor

256 MB Ram

Power Drawbar

Powerfeed X, Y, or Z

Tool Offsets

Integrated Quill and Ram Encoders

Coolant Pump

Table Size 50" x 10"

T-Slots (Number x Width) 3 x 16mm

X-Axis, Longitudinal Travel 31"

Y-Axis, Cross Travel 17"

Z-Axis, Vertical Travel 25"

Quill Diameter 3.9375"

Maximum Quill Travel 5"

Spindle Taper NMTB 40

Spindle Speed Range - Varispeed Drive 70 to 4200 rpm

Spindle Center to Column Face 17.3"

Spindle Motor 5 HP

Power Requirements, Control 115V, 1-Phase, 10A

Power Requirements, Machine 220V, 3-Phase; 60Hz

Maximum Weight of Workpiece 1320 Lbs.

Max. Spindle Nose to Table 23.5"

Footprint of Machine 24" x 44"

Overall Width 73"

Overall Length, Door Open 76"

Max Height 95"

Weight 4500 Lbs.


Specifications

ManufacturerSouthwest, TRAK-DPM, 3-Axis CNC Knee Mill, 1998
ModelTRACK-DPM 3 AXIS
Year1998
ConditionUsed
Stock Number3138
