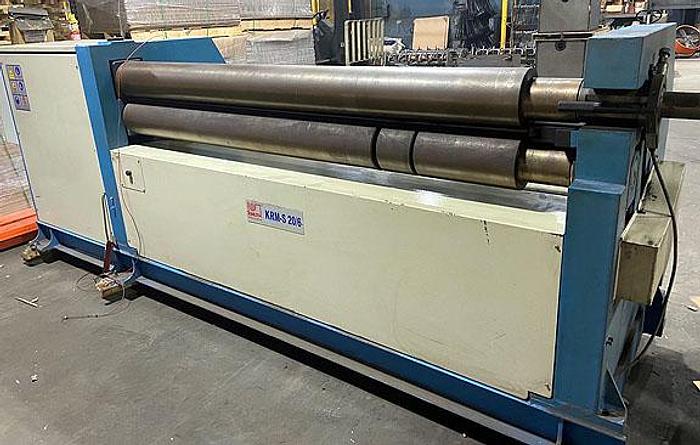

Knuth, KRM-S 20/6, Asymentrical 83" Wide 3 Roll Bending Machine, 2015

Knuth, KRM-S 20/6, Asymentrical 83" Wide 3 Roll Bending Machine, 2015

Contact us for price

Enfield, CT

orCall 860-623-5700

Description

Width 83"

Prebend thickness 0.24"

Max Thickness 0.28"

Roll diameter 7.5 in.

Min Bending 11.25 in.

Motor rating 5.25 Hp


Dimensions L x W x H  154" x 47" x 36"

Weight 7,920 lbs


All stock machines are equipped with induction Hardened Rollers

Data is based upon mild steel

For cone bending all bending values must be reduced to by 50%

KRM-S 20/6 3 ROLL BENDING MACHINE



Asymmetrical 3-RollBending Machine with

one side Prebend

Hardened rollers, suitable for stainless

steel rolling

Taper bending fixture

Motorized rear roller adjustment

Machine Constructed of high quality steel

High quality steel rollers

Center rollers driven by motor and gears

Top roller swings out

Self Braking main motor

Separate control panel

Meets CE requirements

Low Hours 50 - 100

Equipped with a grove option able

to bend material that is not perfectly

flat


Specifications

ManufacturerKnuth
ModelKRM-S 20/6
Year2015
ConditionUsed
Stock Number3139
