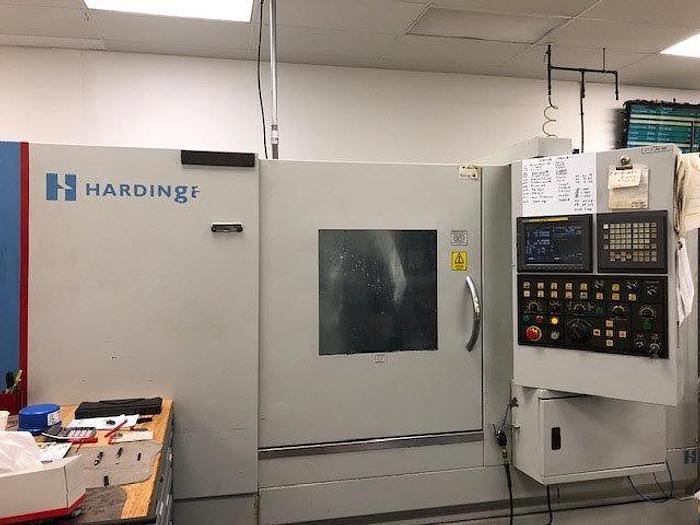

Hardinge, SR150-MSY, CNC Multi Axis Turning Center, 2007

Contact us for price

Newton, NJ

orCall 860-623-5700


Swing Diameter
Maximum Swing Over Way Covers 22.44" (519.2mm)

Work Capacities
Chuck Size 6" (150mm)
Maximum Bar Capacity 2" (51mm)
Maximum Machining Diameter 12.15" (308.6mm)
Maximum Machining Length w/Tailstock and 6" Chuck 20.5" (520.7mm)
(VDI-30 Top Plate)

Maximum Speed 6000-rpm
Maximum Power Rating (Dual Wound Motor) 20-hp (15 kW)
Torque at Base Speed (500 rpm) 211 ft-lb (287 Nm)
Torque at Base Speed (750 rpm) 141 ft-lb (191.2 Nm)
Spindle Nose A2-6
Spindle Bore (not bar capacity) 2.64" (67.05mm)
Spindle Center Height 41" (1041.4mm)
Spindle Reach 18.7" (457.2mm)
Spindle Orient (optional) 1.0 degree

Travels and Feedrates
Maximum X-Axis Travel 7.45" (189.2mm)
Maximum Z-Axis Travel 21.94" (557.3mm)
Maximum Y-Axis Travel (+2.0" -1.377") (optional) 3.377" (85.77mm)
Maximum Z-Axis Thrust 2,250 lbs. (10,000N)
Maximum Y-Axis Thrust 1,175 lbs. (5,227N)
X-Axis Rapid Traverse Rates 1100-ipm (28m/min)
Z-Axis Rapid Traverse Rates 1500-ipm (38m/min)
Y-Axis Rapid Traverse Rates 375-ipm (9.52m/min)

Turret Top Plates
VDI 30 Live Tooling Top Plate (Standard)
VDI 30 bi-directional 12 or 16-station
Square Shank 1" (25mm)
Round Shank Tooling 1.25" (32mm)
Index Time 0.1 Second
Tool Shank Dia. w/ER 25 Collets .062 - .625" (2mm - 16mm)
Live tooling option available
Power Rating (15 Min Rating) 5-hp (3.7 kW)
Torque Rating 17.4 ft-lb (23.6 Nm)
Max Speed 8,000-rpm

Sub Spindle (Optional)
Maximum Speed 6000-rpm
Torque at Base Speed 35 ft-lb (47.7 Nm)
Base Speed 1,500-rpm
Maximum Power Rating 10-hp (7.5 kW)
Spindle Nose A2-5/16C
Chuck Size (Chuck Not Included) 6" (150 mm)
Maximum 16C Collet Capacity 1.625" (42mm)
Spindle Center Height 41" (1041.4mm)
Spindle Reach 18.7" (474.9mm)
Spindle Orient (optional) 1.0 degree
Maximum Travel 18.7" (474.9mm)
Maximum Traverse Rate 1500 ipm (38 m/min)

Coolant Facilities
Coolant Capacity 50 gallon (189 liter)
Maximum Pressure 187 psi (12.9 bar)
Coolant Flow Rate (Per-Minute) 6.75 gallon (25.48 liters)
High Pressure Through Turret (Option) 1,000 psi (68.95 bar)

Accuracy and Surface Finish Specifications
Overall Axis Repeatability (X, Z) .000050" (1.27 micron)
Part Surface Finish 12 micro-inch (.30 micron)
Part Roundness .000030" (.76 micron)

Power Requirements (Standard Configuration)

Maximum KVA Rating 58 kVA
Volts/Full Load Amps 230 volt/112 FLA
Phase/Hertz 3-phase/50-60 Hz

Program Resolution .0001" (.001mm)
Machine Lubrication Grease
Machine Communication RS-232-C, Ethernet

Machine Length (Sub-Spindle Version) 117.8" (2992.12mm)
Machine Length (w/chip conveyor) 163.2" (4145.3mm)
Machine Depth 89.3" (2268.2mm)
Machine Height 77.7" (1973.6mm)
Approx. Machine Weight 15,086 lb (6443 kg)
Approx. Shipping Weight 15,686 lb (7115 kg)
Air Requirement 70 - 90 psi (4.8 - 6.2 bar)
GE Fanuc "i" Sr Series CNC Control
Tool Touch Probe
Parts Catcher
Collet Chuck on main spindle
16C Collet subspindle
C-Axis on main & subspindles
Y-Axis Capability
12 Position Turret
Chip Conveyor
LNS Servo 65 Short magazine bar feed
All availabel standard and live tool holders
All available Manuals


Serial Number350489
Stock Number3091
