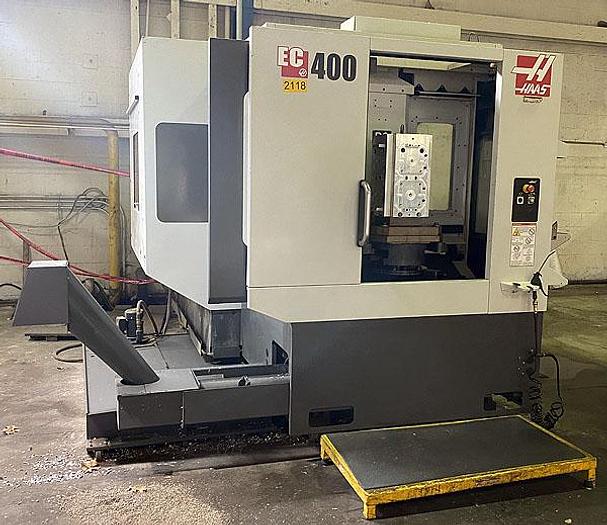

3142, HAAS, EC 400, CNC HMC with 4th Axis (B), 2014

3142, HAAS, EC 400, CNC HMC with 4th Axis (B), 2014

Contact us for price

Enfield, CT

orCall 860-623-5700

Description

Travels

X Axis 20"

Y Axis 25"

Z Axis 20"


Spindle

Max Rating 20HP

Max Speed 12,000 RPM

Max Torque 90.0 ft-lbf @ 200 rpm

Drove System Inline Direct-Drive

Taper CAT 40

Bearing Lubrication Air / Oil Injection

Cooling Air Cooled


Integrated 4th Axis (B Axis)

90° Rotation Time (Full 4th) 3.0 s

Max Weight on Platter 880 lb

Rotational Torque (continuous) 424 ft-lbf

Backlash 30 arc-sec

Gear Ratio 106:1

Min Resolution 0.001°

Indexing Accuracy +/- 15 arc-sec

Repeatability 10 arc-sec

Rapids on B 150°/sec


Pallet Changer

Pallet Quantity 2

Pallet Length 15.75"

Pallet Width 15.75"

Max Pallet Load 880 lb

Pallet Change Time 15 s

24 POS ATC


Feed Rates

Max Cutting 883 ipm

Rapids on X 1400 ipm

Rapids on Y 1400 ipm

Rapids on Z 1400 ipm


Tool Changer

Type SMTC

Capacity 24 ATC

Max Tool Dia (Full) 2.5"

Max Tool Dia (Adjacent Empty) 5.0"

Max Tool Length (from gage line) 12"

Max Tool Weight 12 lb

Tool-to-Tool (avg) 2.8 s

Chip-to-Chip (avg) 3.6 s


Dimensions

Domestic Pallet 202" x 100" x 112"

Weight 17520 lbs


Haas CNC Controller

Renishaw Toolsetter System


Specifications

ManufacturerHAAS
ModelEC400
Year2014
ConditionUsed
