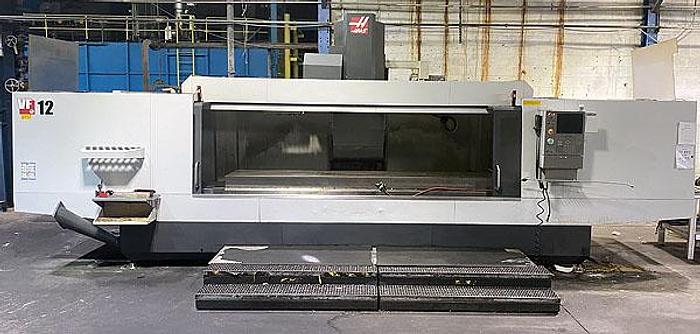

3143, HAAS, VF 12/40, CNC VMC - 3 Axis, 2014

No longer available

3143, HAAS, VF 12/40, CNC VMC - 3 Axis, 2014

Enfield, CT

Description

Travels

X Axis 150.0 in

Y Axis 32.0 in

Z Axis 30.0 in

Spindle Nose to Table ( -max) 34.0 in

Spindle Nose to Table (-min) 4.0 in


Spindle

Max Rating 30.0

Max Speed 7500 rpm

Max Torque 90.0 ft-lbf @2000 rpm

Max Torque w/opt Gearbox 250 ft-lbf @ 450 rpm

Drive System Inline Direct-Drive

Taper CAT 40

Bearing Lubrication Air/Oil Injection

Cooling Liquid Cooled


Table

Length 150.0 in

Width 28.0 in

T-Slot Width 0.626 in to 0.630 in

T-Slot Center Distance 4.92 in

Number of Std T-Slots 5

Max Weight on Table (evenly distributed) 4000 lb


Feedrates

Max  Cutting 360 ipm

Rapids on X 360 ipm

Rapids on Y 600 ipm

Rapids on Z 600 ipm


Tool Changer

Type SMTC

Capacity 30+1

Max Tool Diameter (full) 2.5 in

Max Tool Diameter (adjacent empty) 6.0 in

Max Tool Length (from gage line) 16 in

Max Tool Weight 12 lb

Tool-to-Tool (avg) 2.8 s

Chip-to-Chip (avg) 3.6 s


Electrical Specification

Spindle Speed 7500 rpm

Drive System Inline Direct Drive

Spindle Power 30.0 hp

Input AC Voltage (3 Phase ) - Low 220 VAC

Full Load Amps (3 Phase) - Low 70 A

Input AC Voltage (3 Phase) - High 440 VAC

Full Load Amps (3 Phase) - High 35 A


Dimension-Shipping

Domestic Pallet 343 in x 110 in x 130 in

Weight 36300 lb

Specifications

ManufacturerHAAS
ModelVF 12/40
Year2014
ConditionUsed
