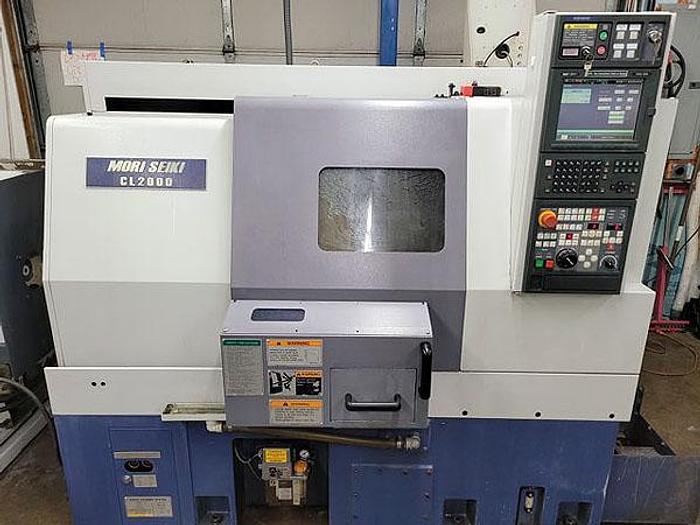

3146, Mori-Seiki, CL-2000BT, CNC Turning Center, w/Quick Load Servo S2 Bar Feed, 2002

Capacity

Swing over bed 20"

Max turning dia 17.3

Standard Turning Dia 7.7"

Max Turning length 22.1"

Bar Work capacity 2.5"

Travel

X-Axis Travel 9.6" - (8.7" + 1.0")

Z-Axis Travel 22.4"

Spindle

Spindle Speed range 35-3,500

Type of spindle nose JIS A-6

Through Soindle hold Dia 2.9"

Spindle bearing inner Dia 4.3"

Number of Tool Stations 10

Feed Rate

Rapid Traverse Rate X, Z 944.9 ipm

Jog 0-50.0 (15 Steps)

Tailstock 13.4"

Tailstock spindle dia 3.3"

Tailstock spindle travel 4.7"

Motor

Spindle drive Motor 15/10 HP

Feed Motor 2.7 HP

Coolant Pump Motor .0635/1.04 / .85/1.4

Coolant Tank Capacity 39.6 Gal

Machine Height from floor 71.4"

Floor Space w x d 77.8" x 65.6"

Mass of Machine 7.458"

Weight 7300 lbs

CNC Control MSG-803

LNS Quck Load Servo S2 Bar Feed

Chip Conveyor

16 C Collet Nose
