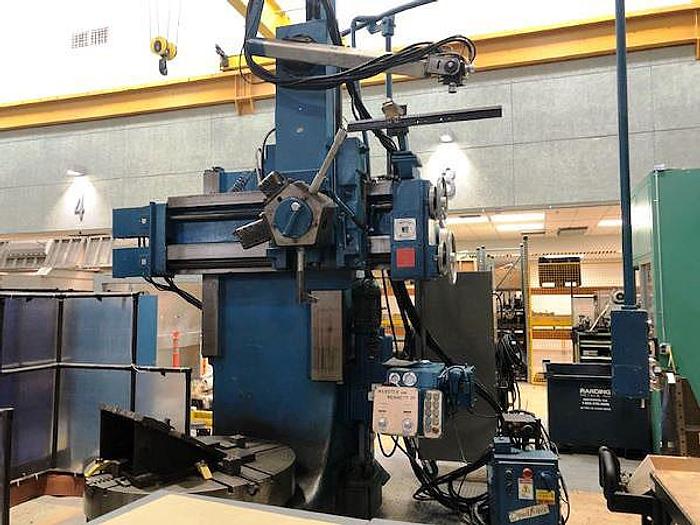

3149, Webster & Bennett, Series R Extra Height, Verticle Turret Lathe, 1978

3149, Webster & Bennett, Series R Extra Height, Verticle Turret Lathe, 1978

Contact us for price

Enfield, CT

orCall 860-623-5700

Description

Diameter of 4-Jaw Chuck, 54"

Maximum swing, 60"

Maximum distance under cross rail, 60" (12" Extra Height) Maximum distance under turret face, 71"

Turret head vertical travel, 38"

Turret horizontal feed from center, 35"

Power rapid traverse, 520 RPM

12 Table speeds, 4.5 to 100 RPM

12 Feeds, .005 to 250 IPM



Dimensions approximately: 115"w x 128"d x 144"h

Weight Approximately: 44,500 lbs



 * Flush Floor Mount - No Pit Required

Pendant Control, 54" 4 Jaw Chuck with Jaws, 5 Sided Turret with

 2 W&B Toolholders and 3 Misc. Toolholders, Mimik Tracer Unit, and New 40 H.P. Motor installed in 2004.

Excellent Condition

Specifications

ManufacturerWebster & Bennett
ModelSeries R Extra Height
Year1978
ConditionUsed
Serial Number6876-6
Stock Number3149
