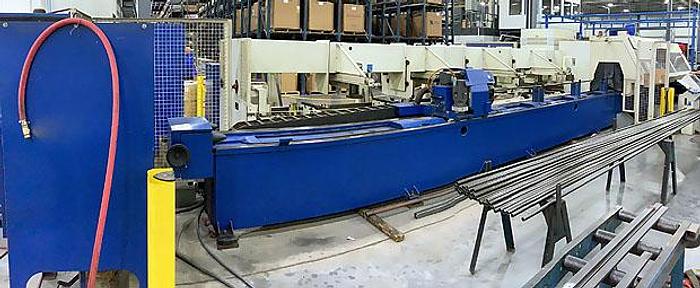

2003 Trumpf TFL 3200

Contact us for price

Enfield, CT

orCall 860-623-5700


Max Laser output 3200 Watts
Max Tube Length 256"
Min Tube Length 5.55"
Max Tube Diameter 5.90"
Min Tube Diameter .78"
Tube Bundle Loader Max Weight 8,000 lbs capacity
Max Work Piece (at final Station) 55.11 lbs
Laser TFL 3000
HI-LAS high pressure cutting
Laser cutting head with 5" lens
Quickchange device for cutting head
Capacitive height regulation (DIAS III)
Programmable cutting gas selection/pressure setting
Programmable power cycles
Logbook function laser
Light fittings for working area
Compact dust extractor
Automatic shut-down device
Safety devices
BNC and RJ45 network connection
Network connection incl. installation
Load unit, 21ft long / 6500mm
Part removal station, 2000mm
Set of clamping jaws D20-85mm and D85-150mm
Accessories (each 2 cutting nozzles 1.0/1.4/1.7 mm, 1 x ceramic part)
Laser TFL 3200
Part removal station 10ft long / 3000m
AutoLas Plus
Tropical version machine up to 43 degree
Flat metal conveyor for PRS 3000
Tube feed with tube magazine (plastic rollers)


ModelTFL 3200
Stock Number3092
