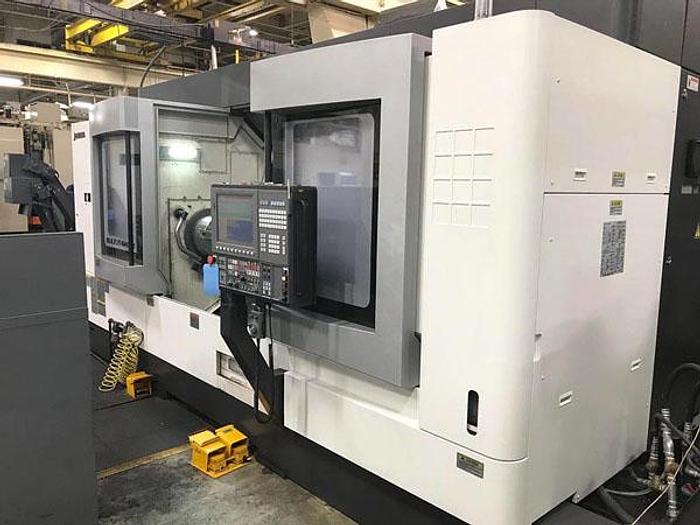

2011 3098, Okuma Multus, B-400II, CNC Universal Head, Live Tooling & Y-Axis, 2015 B400II

Cincinnati, OH


Max Swing Over Saddle 27.95"
Max Machining Diameter 27.95"
Max Working Distance Between Spindles 59.06"
Cross Travel (X-Axis) 27.17"
Longitudinal Travel (Z-Axis) 60.83"
Y-Axis Travel 9.02"
B-Axis Universal Head Swivel 225 Degree
C-Axis Spindle Rotation .001 Degree
Tool Positions 40 Total
Spindle Bore 4.72"
Bar Capacity 3.15"
Spindle Nose A2-11
Spindle Speed Range 38-3800 RPM
Spindle Horsepower Both Spindle 40 HP
Live Tooling Speed Range 90-6000 RPM
Live Tooling Horsepower 14 HP
Approximate Machine Dimensions w/Conveyor 281" x 101"
Approximate Machine Height 119"
Approximate Machine Weight 36,000 LBS
Power On 9605
Cutting Hours 3870
OKUMA OSP P300S CNC Control, Hi-Cut Pro, Hi-G Control, Admac 3D
Virtual Monitor, Full Contouring B-Axis Universal Head, Lathe Tool
Indexing, 15" Kitagawa B-15 15" 3-Jaw Power Chuck, Programmable Torque
Limit, 40 Station Automatic Tool Changer Heavy Duty Tailstock with
60" Between Centers, Full C-Axis Spindle Rotation, CAPTO Spindle Taper,
3D Animation, Servo Link Spindle, Tool Life Management, Tool Wear Comp,
Tool Setting Probe, Plane Conversion, Profile Generation, Coolant Thru
the Spindle, Helical Cutting, Synchronous Tapping, Oil Chiller,
Chip Conveyor & Coolant System.


Manufacturer3098, Okuma Multus, B-400II, CNC Universal Head, Live Tooling & Y-Axis, 2015
Stock Number3098
HoursPower On 9605 Cutting Hours 3870
