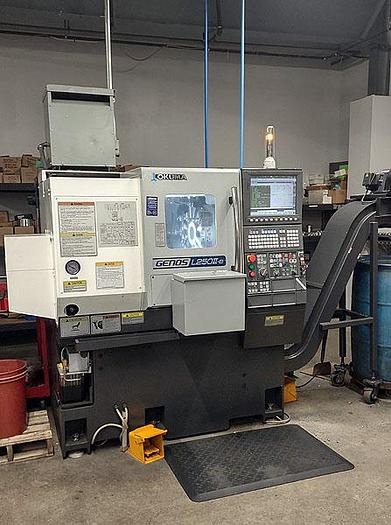

3155, Okuma, L250IIe, CNC Lathe 6" Chuck Very Low Hours, 2019

3155, Okuma, L250IIe, CNC Lathe 6" Chuck Very Low Hours, 2019

Contact us for price

Enfield, CT

orCall 860-623-5700

Description

6" Chuck


Specifications

Swing over Bed Ø17.7"

Swing over Cross Slide Ø11.81"

Max Recommended Turning Diameter  Ø8.66"

Max Recommended Turning Length

with Std Chuck(s) 11.42"

Travel, X-Axis 6.29"

Travel, Z-Axis 12.99"

Rapid Travel IPM X-Axis 984

Rapid Travel IPM Z-Axis 1,181

Axis Thrust X-Axis, lb-f 836

Axis Thrust Z-Axis, lb-f 850

Coolant Tank Capacity (Gals Approx. 34

Power Requirement: 3-Phase 220 Volts, 50/60Hz

 kVA without Optional Equipment  12.6

 Floor Space Required W x D x H (Inches, without Chip Conveyor). 58" x 72" x 64"

 Weight (lbs.) 6,380

Tailstock

Chip Conveyor

Tool Probe

Parts Catcher

Tooling

12-1" Stick Wedges

6- ID Blocks 1.25" dia.

3- Ext Turning

2- Face Turn

Specifications

ManufacturerOkuma
ModelL250IIe
Year2019
ConditionUsed
Stock Number3155
