3156, Miyano, LZ-01R, CNC Turning Center Fanuc 21i-T, 2002

3156, Miyano, LZ-01R, CNC Turning Center Fanuc 21i-T, 2002

Contact us for price

Enfield, CT

orCall 860-623-5700

Description

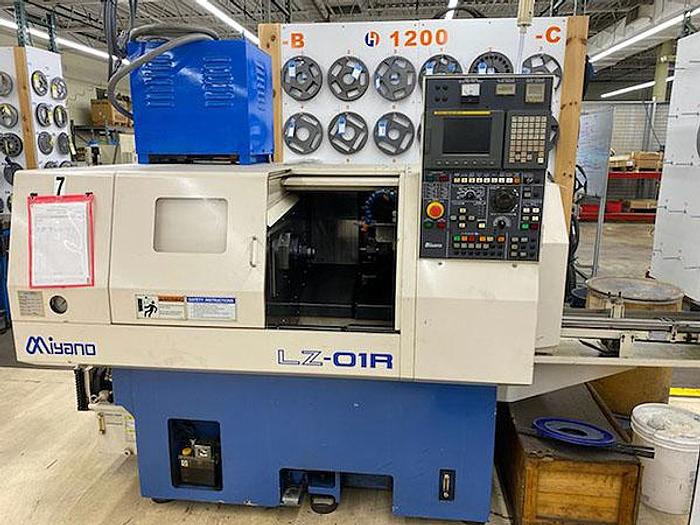

NOTE: The blue transformer in the overall

machine photo is NOT included with the machine

Max Swing Over Bed: 12.6"

Max Turning Diameter:  3.5"

Control Fanuc 21i-T

Main Motor:   10/7.5 HP

Spindle Speed: 60 - 6000 RPM

Tools: 12

Rapid Traverse Rates: 787 IPM

X-Axis Travel: 9.6"

Z-Axis Travel: 9.4"

Turret Index (Single Step): 0.2 seconds


Machine Dimensions (LxWxH):

113" x 57" x 63"

Machine Weight: 7500 lbs.

Collet Chuck

Assorted tooling in the turret

Yoshida Chip Conveyor

Box of assorted tooling & Collets

Manuals


Specifications

ManufacturerMiyano
ModelLZ01-R
Year2002
ConditionUsed
Stock Number3156
