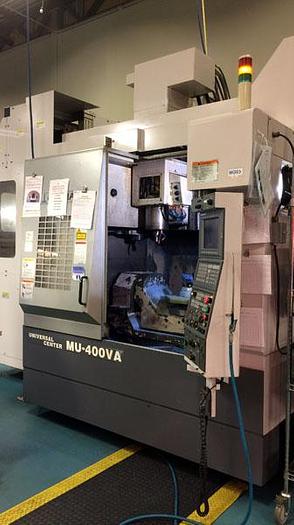

2003 Okuma MU-400VA 5 Axis full Contouring

Contact us for price

Northfield, NH

orCall 860-623-5700

Description

Table Working Surface (Round): 15.75" Dia.
Max Table Load: 660 Lbs.
X-Axis Travel: 30"
Y-Axis Travel: 18.11"
Z-Axis Travel: 18.11"
A-Axis Trunnion Tilt Range: +20 to -110 Degrees
C-Axis Table Rotation Positioning: . 360,000 Degrees
Table Surface To Spindle Nose: 3.94"-22.05"
Rapid Traverse X/Y/Z: 1574 IPM
Spindle Taper: CAT-40
Spindle Speeds: 15,000
Spindle Motor: 20 H.P.
Tool Magazine Capacity: 100
Electrics: 220/3/60
Approximate Dimensions: 114" x 160" x 116"H
Approximate Weight: 17,000 LBS
kuma OSP-E100M-H CNC Control
5-Axis Full Contouring With 15.75" Trunnion Mounted Rotary Table
Remote Handwheel, RS-232 Port,
Through Spindle 213 PSI Coolant,
Flood Coolant
Automatic Pneumatic Doors with Safety Light Curtains
Spindle Chiller
Automatic Power Part Clamping
Chip Conveyor
Coolant System & Tank,

Specifications

ManufacturerOkuma
ModelMU-400VA 5 Axis full Contouring
Year2003
ConditionUsed
Stock Number3101
