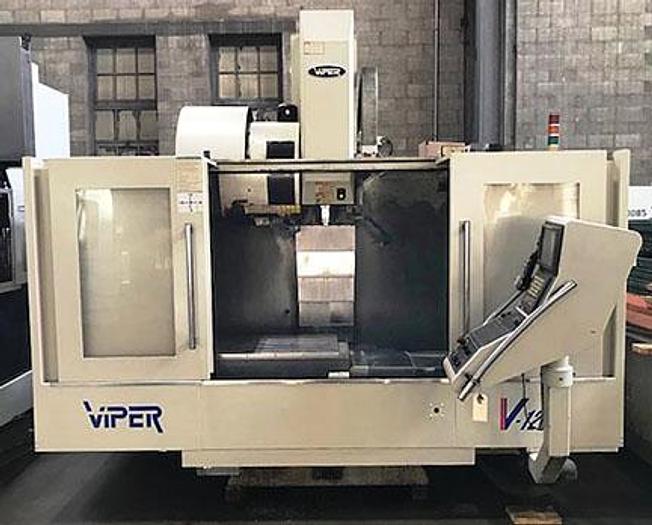

2004 Mighty Viper 1270AG

2004 Mighty Viper 1270AG

Contact us for price

Cincinnati, OH

orCall 860-623-5700

Description

Catalogue Specifications: Table Working Surface................................. 54" x 23" Longitudinal Travel (X-Axis).......................... 50" Cross Travel (Y-Axis)................................. 25" Vertical Travel (Z-Axis).............................. 25" Table Load Capacity................................... 3000 lbs Rapid Feed Rate X&Y Axis.............................. 1100 IPM Rapid Feed Rate Z Axis................................ 800 IPM Tool Storage Capacity................................. 24 Spindle Horsepower.................................... 15 HP Spindle Speeds Range.................................. 60-8,000 RPM Spindle Taper......................................... #40 CAT (V-Flg) Approximate Machine Dimensions........................ 96" x 170" Approximate Machine Height............................ 100 Approximate Machine Weight............................ 16,000 LBS Fanuc 18i CNC (Hartrol AI300) CNC Control, Multiple Program Storage, RS-232 Port, AI Programming and Setup Functions, Remote Jog Pendent, Rigid Tap, Thru-Spindle Coolant, 99 Tool Offsets, Work Offsets, 21 Station Side Mount Tool Changer, Chip Conveyor and Coolant System

Specifications

ManufacturerMighty Viper
Model1270AG
Year2004
ConditionUsed
Serial Number005616
Stock Number3104
