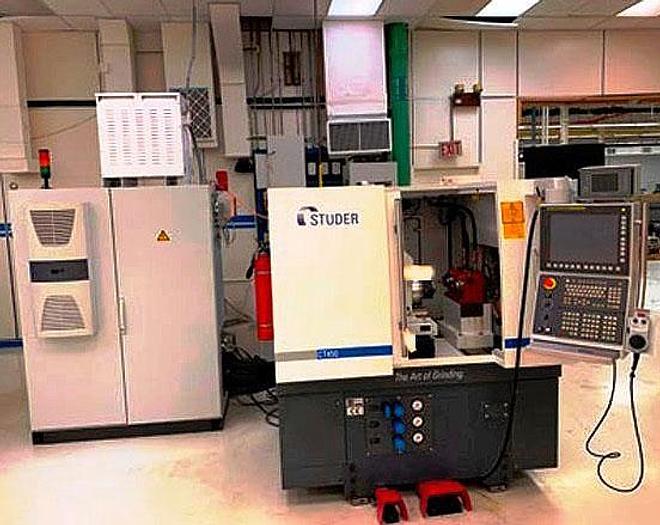

2015 Studer Super Precision CT-450

2015 Studer Super Precision CT-450

Contact us for price

Enfield, CT

orCall 860-623-5700

Description

Very Low Use - approximately 28 hours of use


Main Dimensions

Height of centers above table 4"

Swing diameter in front of table 11.8" x 1.6"

Workpiece dia. approx. 4.7"

Length of Parts 9"

Grinding length (with 1 spindle) 4.7"


Transverse Axis X

Max. travel 17.7"

Max. speed 472 ipm

Resolution 0.000.004"


Longitudinal Axis Z

Max. travel 7.4"

Max. speed 472 ipm

Resolution 0.000,004"


Grinding Spindle Support

Spindle set-up Linear

Max. number of spindles 3

HF Spindle dia. 1.7"/2.4"/3.1"/3.9"/4.7"

Belt-driven spindle 3.1"

External grinding wheel 12"


Workhead


Rpm range 1 - 1500 rpm

Fitting taper DIN/ISO 702-1 A2.4/MT5

Bar capacity 1.1"

Driving power 1.9 hp

Load on spindle nose 111 ft lbs

B-Axis setting angle (manual) +/- 2 deg (opt +21/31 deg)

C-Axis 0.0001 deg


Control Unit

Fanuc Oi-TD / Fanuc 31i-A (with loader)


Connected loads

Total connected load 34 kVA

Air Pressure 71 - 145 psi

Total weight 5720 lbs

B- Axis & C- Axis capable

Rotary Wheel Dresser

Full Enclosure

FANUC 31cA CNC control

2 ID spindles

Coolant Tank & pump




Specifications

ManufacturerStuder
ModelSuper Precision CT-450
Year2015
ConditionUsed
Stock Number3106
