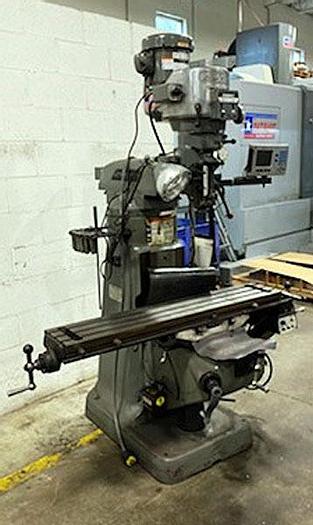

3114, Bridgeport, 9"x48" Series I, Vertical Miller Power feed table & Accurite DRO, 1995

3114, Bridgeport, 9"x48" Series I, Vertical Miller Power feed table & Accurite DRO, 1995

Contact us for price

Windsor, CT

orCall 860-623-5700

Description

Table Working Surface 9" X 48"

Number of T-Slots 3 RANGE

Longitudinal (X) 32-1/2"

Cross (Y) 12"

Quill (Z)    5"

Max/Min Distance, Spindle Nose to

Table 18-1/2" / 2-1/2"

Max/Min Distance, Centerline of Spindle

to Face of Column 18-3/4" 6-3/4"

Ram Travel 12"

Head tilt, left and right 90 degrees

Head tilt front to rear each way 45 degrees

(3) Power Quill Feeds .0015,.003,.006 IPR

INF Variable spindle speeds, two ranges  60 - 500 R.P.M. / 500 - 4,200 R.P.M.

Spindle Taper   R8

Maximum Collet capacity   3/4"

Approximate overall dimensions 62"W X 63"D X 83"H

Approximate machine weight 2,000 LBS

Acu-Rite two Axis digital readout for X & Y

table of travels

Trav-A-Dial for quill travel

Bridgeport Power feed for Longitudinal

Travel of Table

Chrome Ways

Bridgeport Series I Milling Head

BIJUR Manually operated One-Shot

Lubricant system

2 H.P. 3/60/230-460 Volt spindle drive motor

and electrical controls


Specifications

ManufacturerBridgeport
Model9" x 48" Series I
Year1995
ConditionUsed
Stock Number3114
