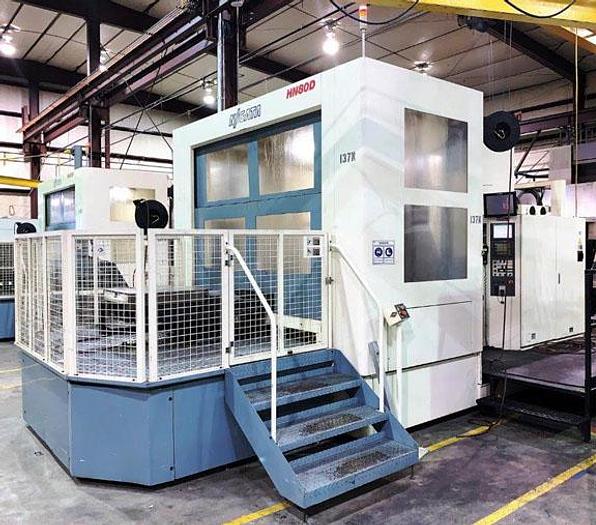

3118, Niigata, HN80D, CAT 50 Taper, 4-Axis Horizontal Machinging Center, 2008

X-Axis Travel 60.2"

Y-Axis Travel 48.4"

Z-Axis Travel 40.2"

Number of Pallets  2

Pallet Size 31.5" X 31.5"

Max. Pallet Load 5500 LBS

Spindle Speed 6000 RPM

Spindle Taper CAT 50

Tool Stations 90

Rapid Traverse (X,Y,Z) 1181 IPM

Cutting Feedrate 591 IPM

Tool Change Time 5.5 SECONDS

Max Tool Diameter, Adj. Pocket Full  4.7"

Max Tool Diameter, Adj. Pocket Empty 11.8"

Max Tool Length 24"

MAX Tool Weight  66 LBS.

Fanuc 161-MB CNC Controls

(2) 31.5"X31.5" Pallets

2-Station Pallet Changer

Full B-Axis Contouring Pallet Rotation

Chip Blaster High Pressure Coolant System

Mist Blaster Mist Extraction System

Chip Conveyor
