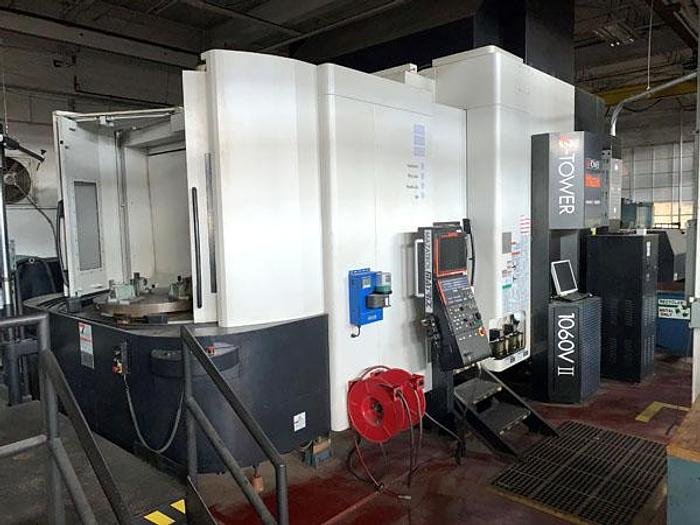

3123, Mazak, Integrex e1060/V8 II, CNC 5 Axis Milling/Turning Cntr, 2010

3123, Mazak, Integrex e1060/V8 II, CNC 5 Axis Milling/Turning Cntr, 2010

Contact us for price

Enfield, CT

orCall 860-623-5700

Description

Capacity

Maximum Machining Diameter 49.21"

Maximum Machining Length 49.21


Turniong Spindle

Chuck Size 1000 mm

Maximum Speed 500 rpm

Motor Output (30 Minute rating ) 37 kw/ 50.0 hp


Milling Spindle

B-Axis Travel 150 degrees

Magazine Capacity 40

Maxzimum Speed 10,000 rpm

Motor Output (30 minute rating) 37 kw/ 50.0 hp


Feed Axes

Travel (X Axis) 73.82"

Travel (Y Axis) 41.73"

Travel (Z Axis) 52.95

Pallet Changer

Mazatrol "Matrix" Color Control 20 Gigabit Hard Drive

B & C Axis Full NC Contouring 0.01 Degree Increments

1,000 MM round Pallets with Location Bore

CAT 50 / Big Plus taper receiver for Milling & Turning Holders

Coolant Through Milling Head Spindle / 213 PSI

Automatic tool measuring Eye

Consept Belt Style Chip Conveyor

Working Centering with Power Rotation (on front of 2 Pallet Changer)

Approximate Hours:

Power ON 81145

Auto Ope.  6308

Auto Cut  4343

Total Cut  3928


Specifications

ManufacturerMazak
ModelIntegrex e1060/V8 II
Year2010
ConditionUsed
Stock Number3123
