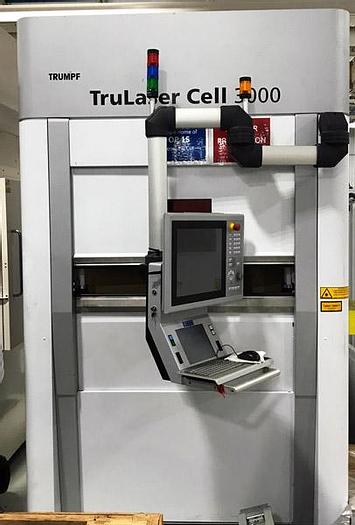

3124, Trumpf, Cell 3000 / TruMicro 7240, Ablation process, 2014

3124, Trumpf, Cell 3000 / TruMicro 7240, Ablation process, 2014

Contact us for price

North Carolina

orCall 860-623-5700

Description

Please Note:

** This is a two unit Machine Cell & Laser mostly

used for Ablation Processes such as laser cleaning

or selective coating removal.


Trulaser Cell 3000

Axis Travel Range

X - Axis 31.50"

Y - Axis 23.62"

Z - Axis 15.75"

B Axis +/- 135 Degrees


Maximum Axis Speeds

Axially Parallel in X 50m/min

Axially Parallel in Y 50m/min

Axially Parallel in Z 50m/min

Simultaneous 85 m/min

B Axis 120 1/min


Maximum Axis Accelerations

Axially Parallel in X 10 m/s²

Axially Parallel in Y 10 m/s²

Axially Parallel in Z 10 m/s²

Simultaneous 17 m/s²

B Axis 130 rad/s²


Positioning Accuracy

Linear Axes (X, Y, Z) 0.00059055"

Rotary Axes (B) 0.02 Degrees


Laser

Maximum Laser Power 300W



TruMicro 7240 - POWER SUPPLY


Laser Perameters

Average Output power 300W

Beam Quality 5 mm /mrad

Wavelength 515 nm

Pulse Duration 300 ns

Maximum Pulse Engergy 7.5 mJ

Minimum Repetition Rate 20 kHz

Maximum Repetition Rate 100 kHz

Minimum Laser Light Cable Dia 100 um


Approx Dimensions

57.48 W

53.15 H

28.74 D










Specifications

ManufacturerTrumpf
ModelCell 3000 / TruMicro 7240
Year2014
ConditionUsed
Stock Number3124
