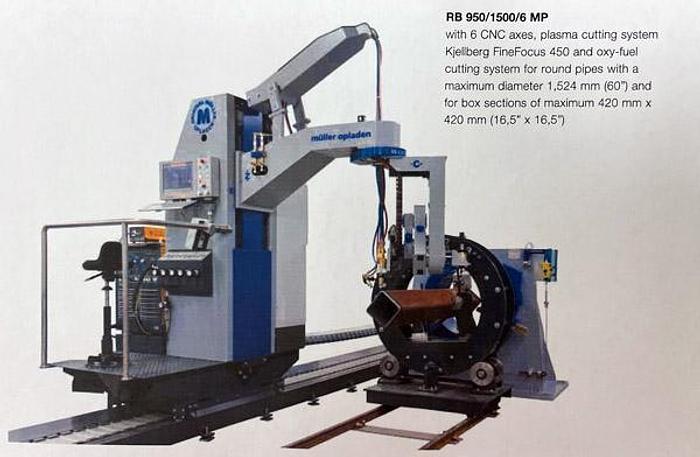

3128, Muller Opladen, RB 950/1500/6 Classic, CNC Oxy Fuel/Plasma Cyl Cut Sys., 2014

3128, Muller Opladen, RB 950/1500/6 Classic, CNC Oxy Fuel/Plasma Cyl Cut Sys., 2014

Contact us for price

Texas

orCall 860-623-5700

Description

Minimal Hours only 400

Boxed and ready to ship


Technical Information

Weight of standard machine   22,046 lbs

Version 6 Classic Axes

Max Pipe weight 55,116 lbs

Min. - max. clampable round pipe dia. 3.15" - 60"

Size of chuck opening for round pipe

through push 37.40"

Min. / max. clampable box section sizes 16.54" x 16.54"

Min. / max. clampable girder sizes 16.54" x 16.54"

Min. / max. cuttable workpiece lengths 11.9" - 1,181.10"

Suitable for oxy-fuel and plasma cutting

process

Min. / max. wall thicknesses for

oxy-fuel/plasma .20"-3.54" / .04"-3.15"

Max. cutting angle main pipe to branch

pipe for oxy fuel/plasma +/- 70° / +/- 55°

Possible pipe support solutions Pipe carriage/motorized conveyor

Self-centering three-jaw pipe chuck with main drive, electric-motor-driven clamping process and CNC axis

3 mechanical scissor-based pipe carriages with manual adjuster.

Column with column, boom, torch head (cutting trolley) and CNC axis. 12,000 mm (37.2') track.

Torch head with oscillation along the pipe axis, 380° rotation about its own axis and 2 CNC axes.

Laser sensor with CNC axis for corrections of variation between the flame cutter and pipe surface.

Slide system with CNC axis for automatic advance and retraction of the cutting torch.

Electrical hardware consisting of switch cabinet, CNC, PLC, industrial computer, control panel.

COROBS® pipe profile cutting machine in English with MDI module, SAC module, SPC module, MPC module, CPS module, starting point optimization, optimization of piercing, joint compensation, automatic speed control, negative cutting angle correction, restart positioning for aborted cutting operations, self-diagnosis system, logfile on the most recently performed operations.

Library of standard cut macros.

Internet maintenance module.

Conventional oxy-fuel cutting package for the cutting of pipes with a maximum wall thickness of 90 mm, with solenoid-valve-controlled gas supply, manometer for setting gas pressure, ignition torch, solenoid-valve-controlled cutting torch, cutting nozzle package and operator protection package.

Solenoid-valve-controlled preheating torch.

Patented advanced dished-end cutting module as per enclosed description.

Plasma power source Hypertherm HPR 400 XD with manual gas console, cutting torch and hose package, as per enclosed description.

Fume extraction system for an extraction rate of 9,000 qm3/h with fume extracting points at the cutting head and behind the chuck system as per enclosed.


Specifications

ManufacturerMuller Opladen
ModelRB 950/1500/6 Classic
Year2014
ConditionUsed
Stock Number3128
